Flanges and fittings
A pipeline is only as good as its joints. We supply forged and machined flanges to ASME B16.5 and EN 1092-1, plus butt weld fittings — elbows, tees, reducers and caps — in carbon steel and stainless, each one marked and traceable to its heat number and its mill test certificate.
Products in this group
Weld Neck Flange
Forged flanges to ASME B16.5 and EN 1092-1, marked and traceable to the heat number.

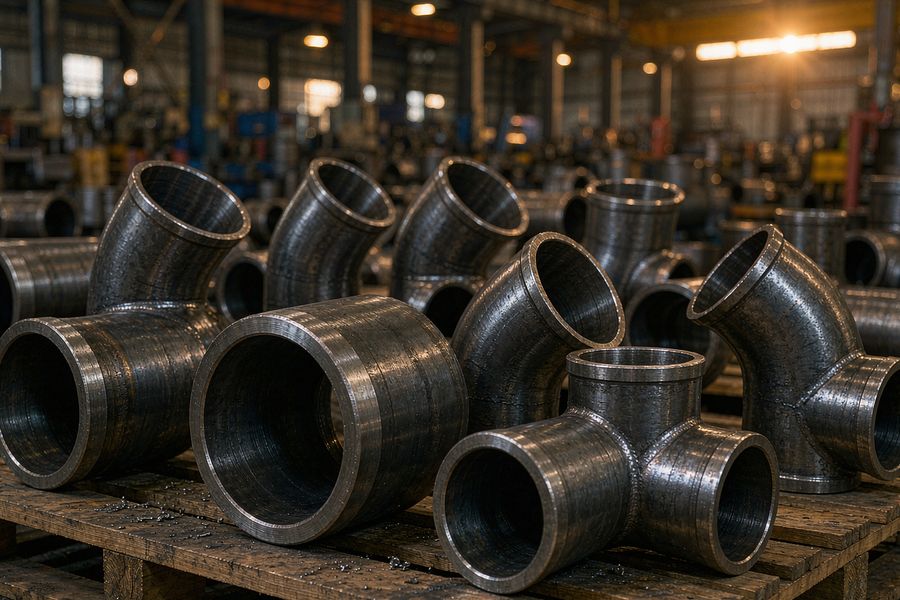

Butt Weld Pipe Fittings
Elbows, tees, reducers and caps to ASME B16.9 in carbon and stainless steel.
Grades we hold specifications for
A105 Weld Neck Flange (ASME B16.5)Forged carbon steel flange to ASTM A105 / ASME B16.5A234 WPB Butt Weld ElbowSeamless and welded fittings to ASTM A234 / ASME B16.9
Typical size range
| Product | Size range | Pressure / schedule | Material |
|---|---|---|---|
| Weld neck flange | NPS 1/2" – 24" (DN15 – DN600) | Class 150 – 2500 | A105, A182 F304 / F316, A350 LF2 |
| Slip-on, blind, plate flange | NPS 1/2" – 24" | Class 150 – 900 | A105, A182 F304 / F316 |
| Butt weld elbow and tee | NPS 1/2" – 48" | SCH10 – XXS | A234 WPB, A403 WP304 / WP316 |
| Reducer and cap | NPS 1/2" – 48" | SCH10 – XXS | A234 WPB, A403 WP304 / WP316 |
Standards we work to
Other grades and non-standard sizes can be sourced on request — send the requirement and we confirm feasibility before you commit.
